P16mm RGB Outdoor Led Display
Home
/
LED SPECIALS
/
Led Display Stadium
/ P16mm RGB Outdoor Led Display
P16mm RGB Outdoor Led Display
Categories
Dallas Cowboys Stadium
,
Football Stadium Boards
,
Led Display Stadium
,
LED SPORTS DISPLAY
,
OUTDOOR DISPLAY
,
Soccer Field Advertising
Tags
p16mm led display
,
p16mm outdoor led screen
Inquiry Now
Description
Description
Resolution
32(H)×16(V)
Pitch
16mm
Density
3906 pixels/㎡
LED Arrangement
DIP, RED, GREEN AND BLUE
Driver Mode
Static constant current drive
Size
192mm×192mm, or 192mm x 96mm
Mask
Pure Black mask-high contrast screen
3.Electricity Parameter
Optical Ratings
Brightness
≥8500cd/㎡
View Angle
120 degree ( horizontal) 90 degree (vertical)
View Distance
16m-200m
Gray Scale
48bits input, correction with 16bits
Display Color
16.7M
Brightness Adjustment
100 levels
Power Supply
Operation Power
AC100-240V 50-60HZ Switch-able
Maximum Power Consumption
600W/m2
Average Power Consumption
280 W/m2
Control System
Correction Scale Level
16bits
Frame Update Frequency
60Hz
Screen Refresh Frequency
1200Hz
Gamma Correction
-5.0—5.0
Support Input
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance
Ethernet cable 100m, optical fiber 5km
Support VGA Mode
800×600, 1024×768, 1280×1024, 1600×1200
Color Temperature
5000-9300 adjustable
Brightness Correction
dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.
-20-60 Celsius degree
Operating Humidity
10-95% RH
Operating Life
100,000 hours
MTBF
5000 hours
Continuous Working Time
≥48 hours
Protection Level
IP65 Waterproof Outdoor
Out of Control Pixel Rate
0.01%
Related products

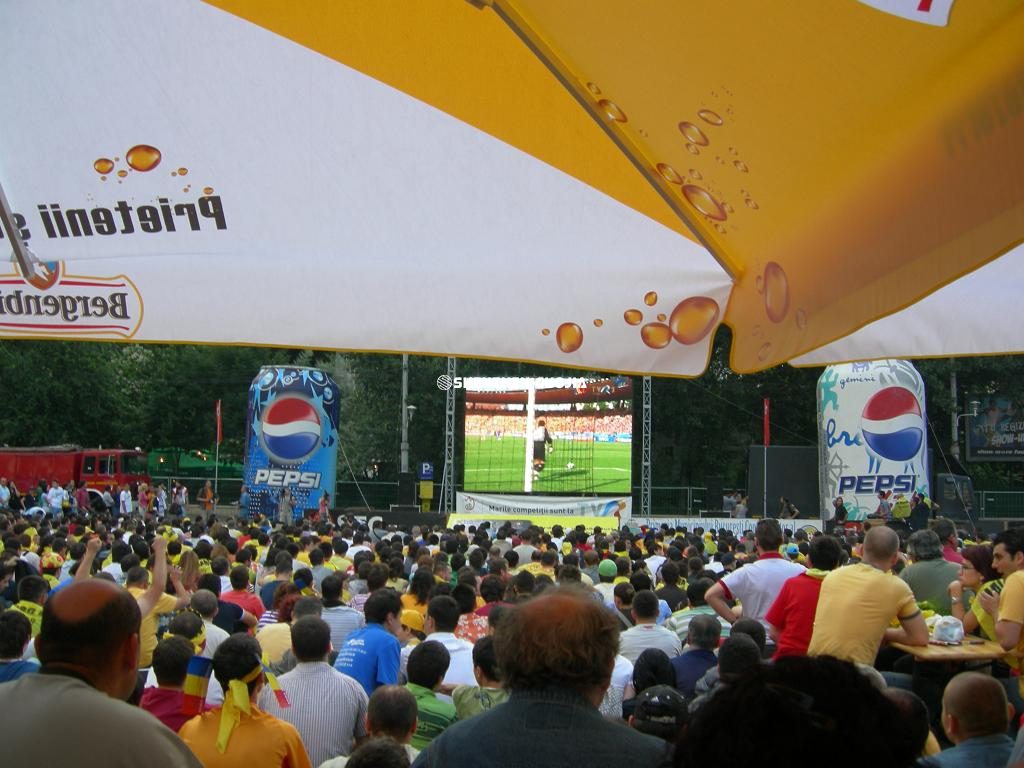

P16mm Rental Style Screen in Romania
Read more

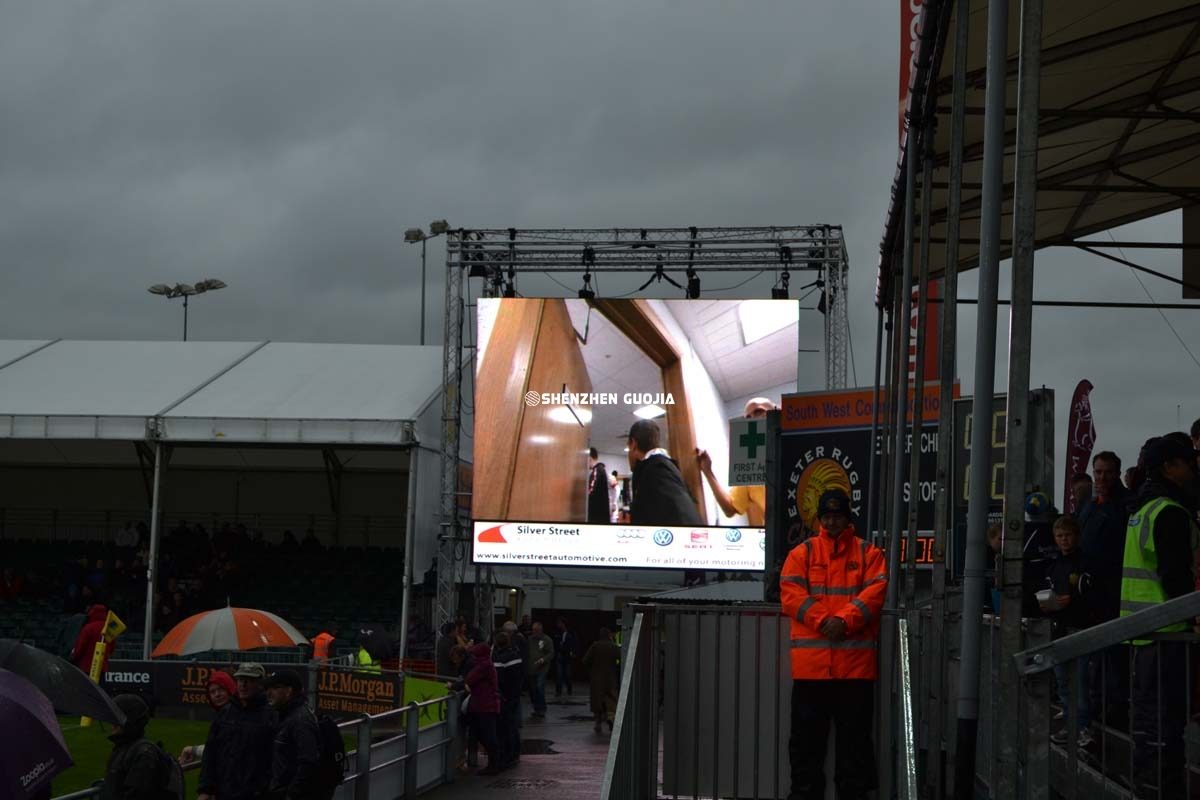

Outdoor P16mm in England Sussex Ground
